PRESSURE SAFETY VALVE
EF1415
- API 526 pressure safety valve platform
- Class 150 to Class 2500
- For steam, gases, vapours and liquids
Key Specifications
Nominal Sizes½" x 1" to 16" x 20"
Pressure RatingsASME Class 150 to Class 2500
Temperature Range-196°C to +540°C
Design StandardsAPI 520, API 521, API 526 / ASME Section VIII
MaterialsWCB / WC6 / WC9 / CF3M / CF8M / A890 Grade 5A
ConnectionsASME / ANSI B16.5 flanged
Related Articles
From Technical Blog
EF1415 Pressure Safety Valve for API 526 and ASME Section VIII ApplicationsRupture Disc vs Safety Valve: When to Use Each OneEngineering the Next Step: What We Are Building at EFSVALVES in 2026Cryogenic Testing of PSV and Safety Relief Valves with Liquid Nitrogen
Read More Articles
Selection & RFQ Assistant
Help us identify the right solution
Guided request
Build a technical RFQ line with service data, sizing conditions, accessories and documents.
01
Service
02
Process
03
Options
FAQs
The EF1415 is a spring-loaded pressure safety valve designed for overpressure protection of pressure vessels, process equipment and piping systems.
It is intended for industrial applications requiring an API-oriented pressure safety valve configuration in accordance with the applicable project and process requirements.
It is intended for industrial applications requiring an API-oriented pressure safety valve configuration in accordance with the applicable project and process requirements.
The published EF1415 design basis includes API 520, API 521, API 526 and ASME Section VIII.
The exact applicable code and certification scope should be confirmed for the selected valve configuration and project requirements.
The exact applicable code and certification scope should be confirmed for the selected valve configuration and project requirements.
API 526 standardizes key aspects of flanged pressure relief valves, including nominal inlet and outlet sizes, pressure classes and standardized orifice designations.
The EF1415 is the EFSVALVES platform for projects requiring an API 526-oriented spring-loaded PSV.
The EF1415 is the EFSVALVES platform for projects requiring an API 526-oriented spring-loaded PSV.
A conventional spring-loaded safety valve can be affected by backpressure acting at the outlet. A balanced-bellows configuration is used where the effect of backpressure needs to be reduced.
The appropriate configuration should be selected from the actual built-up and superimposed backpressure conditions and the applicable sizing requirements.
The appropriate configuration should be selected from the actual built-up and superimposed backpressure conditions and the applicable sizing requirements.
ABOUT EF1415

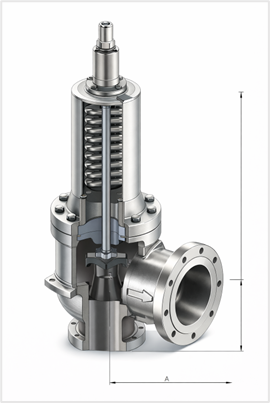

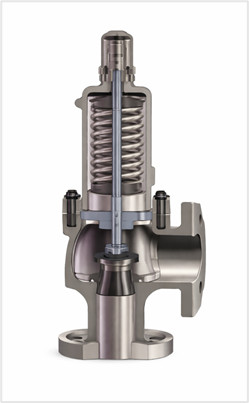

The EF1415 is a spring-loaded pressure safety valve (PSV) designed for overpressure protection of pressure vessels, process equipment and piping systems in accordance with API 520, API 521, API 526 and ASME Section VIII.
Available in sizes from ½" x 1" to 16" x 20" and pressure classes from Class 150 to Class 2500, the EF1415 can be configured for a wide range of industrial services, including demanding pressure, temperature and corrosion conditions.
A broad selection of body materials and project configurations allows the valve to be adapted to the required process conditions, applicable code and project specification. Final selection and sizing should be based on the fluid, set pressure, relieving capacity, temperature, backpressure and installation requirements.
Frequently Asked Questions
The EF1415 is a spring-loaded pressure safety valve designed for overpressure protection of pressure vessels, process equipment and piping systems.
It is intended for industrial applications requiring an API-oriented pressure safety valve configuration in accordance with the applicable project and process requirements.
It is intended for industrial applications requiring an API-oriented pressure safety valve configuration in accordance with the applicable project and process requirements.
The published EF1415 design basis includes API 520, API 521, API 526 and ASME Section VIII.
The exact applicable code and certification scope should be confirmed for the selected valve configuration and project requirements.
The exact applicable code and certification scope should be confirmed for the selected valve configuration and project requirements.
API 526 standardizes key aspects of flanged pressure relief valves, including nominal inlet and outlet sizes, pressure classes and standardized orifice designations.
The EF1415 is the EFSVALVES platform for projects requiring an API 526-oriented spring-loaded PSV.
The EF1415 is the EFSVALVES platform for projects requiring an API 526-oriented spring-loaded PSV.
A conventional spring-loaded safety valve can be affected by backpressure acting at the outlet. A balanced-bellows configuration is used where the effect of backpressure needs to be reduced.
The appropriate configuration should be selected from the actual built-up and superimposed backpressure conditions and the applicable sizing requirements.
The appropriate configuration should be selected from the actual built-up and superimposed backpressure conditions and the applicable sizing requirements.
The published EF1415 range covers nominal inlet and outlet sizes from ½" x 1" to 16" x 20", depending on the selected configuration.
The final valve size must be determined from the required relieving capacity and process conditions.
The final valve size must be determined from the required relieving capacity and process conditions.
The EF1415 is available in pressure classes from ASME Class 150 to Class 2500, depending on valve size, material and configuration.
Published body material options include:
- WCB
- WC6
- WC9
- CF3M
- CF8M
- A890 Grade 5A
Yes. Gas service is included in the published EF1415 application scope.
Final sizing should consider the actual fluid properties, set pressure, relieving temperature, required capacity and backpressure.
Final sizing should consider the actual fluid properties, set pressure, relieving temperature, required capacity and backpressure.
The EF1415 can be configured for liquid pressure-relief duties where the selected execution and sizing conditions are suitable for the application.
Required capacity and fluid properties must be defined for final sizing.
Required capacity and fluid properties must be defined for final sizing.
The EF1415 can be considered for steam relief duties where the selected configuration, temperature range and applicable code requirements are suitable.
Final sizing should be based on the actual steam conditions and required relieving capacity.
Final sizing should be based on the actual steam conditions and required relieving capacity.
No. A pressure safety valve is sized according to the required relieving capacity and process conditions, not simply by matching the pipeline diameter.
The final inlet and outlet sizes are selected according to the applicable valve configuration and installation requirements.
The final inlet and outlet sizes are selected according to the applicable valve configuration and installation requirements.
A balanced configuration can be considered where outlet backpressure may significantly influence conventional valve performance or where the process specification requires a balanced PSV.
Final configuration should be based on the actual backpressure conditions and project requirements.
Final configuration should be based on the actual backpressure conditions and project requirements.
Backpressure can affect valve performance, relieving capacity and configuration selection.
For this reason, both superimposed and built-up backpressure, where applicable, should be defined during sizing rather than treating outlet pressure as a secondary installation detail.
For this reason, both superimposed and built-up backpressure, where applicable, should be defined during sizing rather than treating outlet pressure as a secondary installation detail.
Yes. It can be considered where downstream equipment requires protection against a credible overpressure scenario caused by failure or malfunction of a pressure-reducing system.
The required relieving case and capacity must be established from the actual process conditions.
The required relieving case and capacity must be established from the actual process conditions.
Yes. Chemical, gas and petrochemical services are included in the published EF1415 application scope.
The appropriate material and valve configuration should be selected according to the actual fluid, pressure, temperature and corrosion requirements.
The appropriate material and valve configuration should be selected according to the actual fluid, pressure, temperature and corrosion requirements.
Yes. Water is included in the published application scope.
Final valve sizing and configuration should be based on the actual liquid properties, relieving case and project requirements.
Final valve sizing and configuration should be based on the actual liquid properties, relieving case and project requirements.
Typical required information includes:
- fluid
- set pressure and operating pressure
- required relieving capacity
- relieving pressure and temperature
- built-up and superimposed backpressure, where applicable
- relevant fluid properties
- applicable code
- required inlet and outlet connections
- material requirements
- project specifications
The EF1415 is based on flanged ASME / ANSI B16.5 connections. The required inlet and outlet size and pressure class should be defined during the RFQ stage and confirmed against the selected execution and project requirements.
Yes. The EF1415 can be supplied with project-specific coating systems, including ISO 12944 C3, C4 and C5-M requirements where specified.
Surface preparation, coating system and required dry film thickness (DFT) should be defined by the applicable project painting specification.
Surface preparation, coating system and required dry film thickness (DFT) should be defined by the applicable project painting specification.
Yes. EN 10204 3.1 or 3.2 material certification and traceability requirements can be incorporated into the agreed supply scope where specified during the RFQ stage.
Delivery time depends on valve size, materials, pressure class, certification and project requirements.
Special materials, large sizes, testing or documentation requirements may require additional manufacturing time.
Special materials, large sizes, testing or documentation requirements may require additional manufacturing time.
Yes. Inspection and testing can be arranged according to the agreed project scope, together with the applicable technical documentation and certification.
EFSVALVES can also support export packaging, logistics and international delivery coordination.
EFSVALVES can also support export packaging, logistics and international delivery coordination.
Yes. The EF1415 can be supplied for EPC and project-managed applications where sizing conditions, materials, pressure classes, inspection, coating and documentation requirements are defined during the RFQ stage.
Final configuration should be confirmed against the project specification and actual process data.
Final configuration should be confirmed against the project specification and actual process data.
