INDUSTRIAL SILENCER
EF700DF
- Custom made industrial silencer for gas and steam venting
- Designed for pressure relief and vent applications
- Engineered to minimize backpressure impact
Applications
Configured Service Scope
Chemical
Gas
Noise Control
Petrochemical
Key Specifications
Design typeBlowdown
Service typeGas / Steam / Vapor discharge
MaterialsCarbon Steel / Stainless Steel
Related Articles
From Technical Blog
How to Reduce Noise in Steam and Gas Relief Systems with Valve SilencersFrom 110 dBA to below 65 dBA: steam discharge silencerHow to Specify a Vent Silencer Correctly
Read More ArticlesRelated Products
Selection & RFQ Assistant
Help us identify the right solution
Guided request
Build a technical RFQ line with service data, sizing conditions, accessories and documents.
01
Service
02
Process
03
Options
FAQs
An industrial vent or blowdown silencer is used to reduce the noise generated when pressurized gas, steam or vapour is discharged to atmosphere. Typical applications include pressure relief, blowdown, venting and other process discharge duties where rapid fluid expansion generates high acoustic emissions.
Rapid expansion from high pressure to a substantially lower discharge pressure can generate high fluid velocities and significant aerodynamic noise. A properly engineered silencer can reduce the acoustic emission generated during this discharge.
Yes. The EF700DF can be considered for pressure relief and vent discharge applications where acoustic attenuation is required. The complete discharge conditions, including allowable backpressure, should be considered during design.
Yes. The EF700DF is intended for gas, steam and vapour discharge applications. The selected configuration depends on the actual fluid and operating conditions.
ABOUT EF700DF

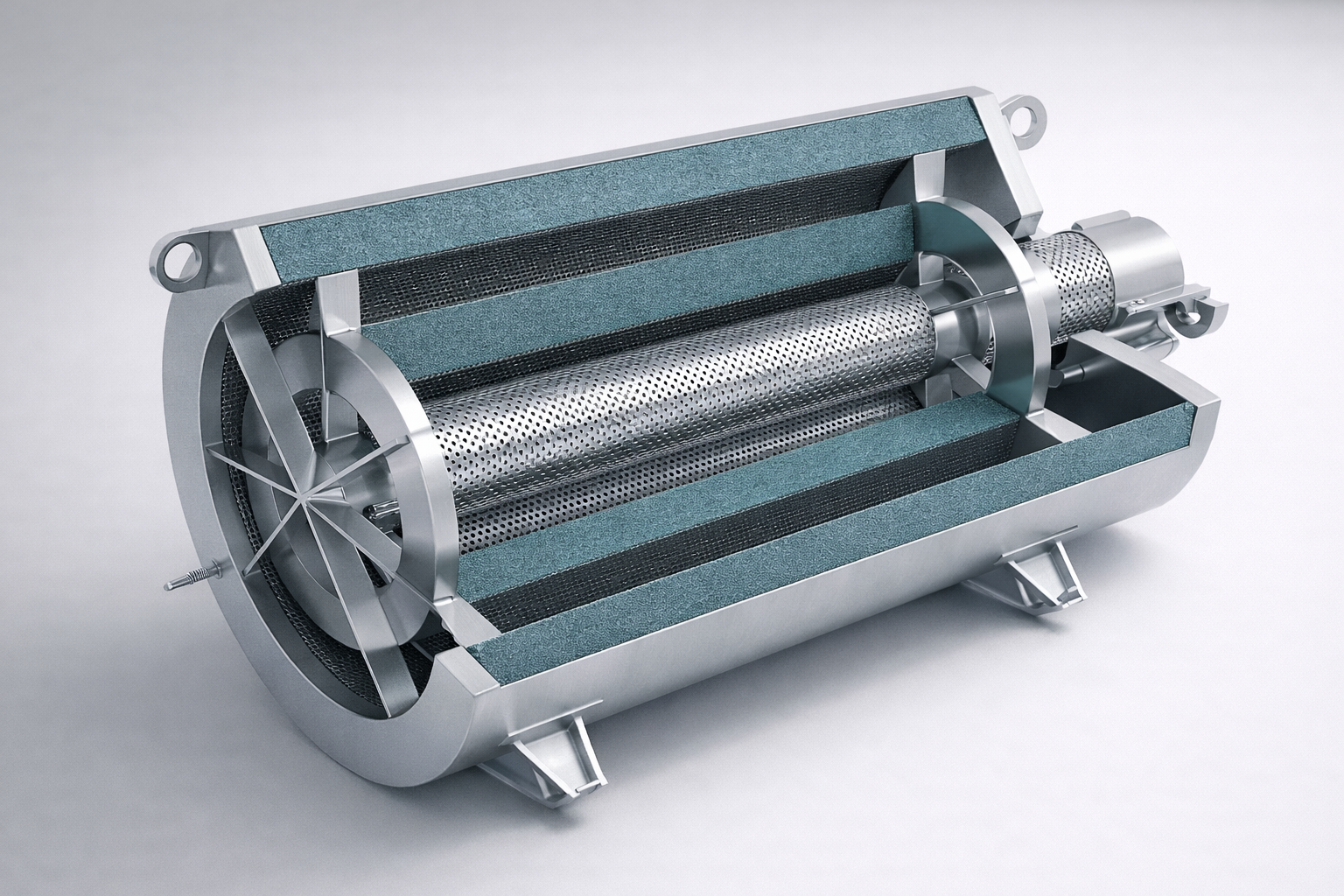

The blowdown silencer is an industrial acoustic device designed to reduce noise generated during the discharge of gases or steam from pressure relief, blowdown and vent systems to atmosphere. It is typically installed downstream of safety valves or vent outlets to control sound emission during intermittent or continuous release events.
The silencer attenuates noise by combining reactive and dissipative acoustic principles, reducing sound energy while allowing controlled flow discharge. Its internal design is engineered according to process conditions such as flow rate, pressure, temperature and allowable backpressure, ensuring effective noise reduction without compromising system performance.
Each blowdown silencer is custom engineered based on project-specific data, including acoustic targets, installation constraints and operating conditions. Depending on the selected configuration, the silencer can be applied in a wide range of industrial installations where reliable noise control is required for gas or steam venting, in compliance with plant specifications and environmental requirements.
Frequently Asked Questions
An industrial vent or blowdown silencer is used to reduce the noise generated when pressurized gas, steam or vapour is discharged to atmosphere. Typical applications include pressure relief, blowdown, venting and other process discharge duties where rapid fluid expansion generates high acoustic emissions.
Rapid expansion from high pressure to a substantially lower discharge pressure can generate high fluid velocities and significant aerodynamic noise. A properly engineered silencer can reduce the acoustic emission generated during this discharge.
Yes. The EF700DF can be considered for pressure relief and vent discharge applications where acoustic attenuation is required. The complete discharge conditions, including allowable backpressure, should be considered during design.
Yes. The EF700DF is intended for gas, steam and vapour discharge applications. The selected configuration depends on the actual fluid and operating conditions.
Yes. Applications can include steam blowdown, process venting and pressure-relief discharge, depending on the operating conditions and required acoustic performance.
Noise attenuation depends on the initial acoustic level, fluid, pressure, temperature, flow rate, required residual sound level and selected silencer configuration. The required acoustic target should therefore be defined for each project rather than assuming a universal attenuation value.
Yes. Sound pressure level depends on the distance from the noise source. An acoustic requirement should therefore state the required dB or dB(A) level together with the relevant measurement distance or location.
Normally required data include process fluid, flow or mass flow, pressure, temperature, discharge conditions, connection size, required acoustic level or attenuation, measurement distance and project specifications. Allowable downstream pressure conditions should also be provided where relevant.
The dimensions depend on flow, pressure reduction, temperature, fluid properties, acoustic target and allowable pressure conditions. Pipe diameter alone is therefore not sufficient for silencer selection.
A silencer can introduce resistance into the discharge system and therefore contribute to backpressure. This effect must be considered during design, particularly when the silencer is connected to a pressure relief or safety valve.
Yes. Engineering controls that reduce acoustic emissions at source can help reduce occupational noise exposure. EU Directive 2003/10/EC establishes daily exposure action values of 80 and 85 dB(A) and an exposure limit value of 87 dB(A). The need for a silencer or other engineering control depends on the actual risk assessment and installation.
Yes. Vent silencers can reduce the contribution of atmospheric steam or gas discharges to industrial environmental noise. The required acoustic target depends on local regulations, permits and project requirements.
The EF700DF can be supplied in carbon steel or stainless steel configurations, according to the current product range.
Yes. Painting and corrosion-protection requirements can be considered according to the installation environment and agreed project specification.
Delivery time depends on size, material, operating conditions, required acoustic performance, quantity and project requirements. The applicable lead time is confirmed individually for each quotation.
Yes. Logistics and international delivery can be coordinated according to the agreed supply conditions.
Yes. Inspection before delivery can be arranged when included in the agreed project scope.
Yes. The EF700DF can be supplied within EPC and project-managed environments where engineering, acoustic, quality, inspection and documentation requirements apply.
Technical data sheets, drawings, applicable test and inspection records and material documentation can be provided according to the agreed project scope. Additional project-specific documentation requirements should be identified during quotation.
