Originally published: July 4, 2015
Updated and expanded: August 2026

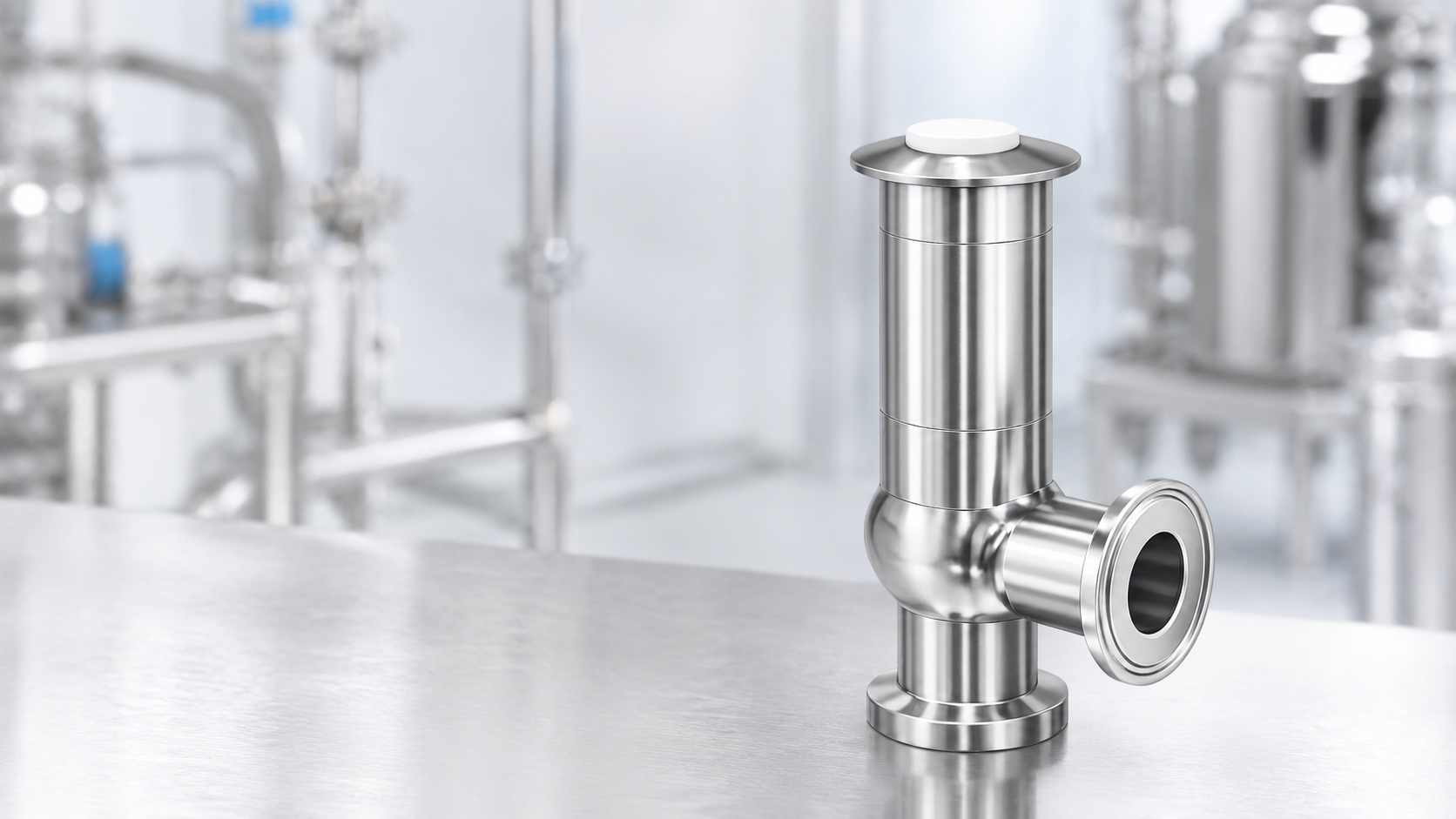

The EFSVALVES EF010 Sanitary Pressure Safety Valve is designed for hygienic process applications where pressure protection must be combined with suitable materials, controlled surface finish and sanitary connection geometry.
The valve is intended for pharmaceutical, food and beverage, cosmetic and laboratory applications, as well as other clean process environments where conventional industrial valve construction may not be the most appropriate option.
Sanitary pressure protection for hygienic process lines
In hygienic process installations, the safety valve forms part of a wider piping and equipment system where cleanliness, accessibility and material compatibility are important alongside the pressure-relief function.
The EF010 addresses these requirements with a dedicated sanitary configuration based on AISI 316L stainless steel, polished internal surfaces and hygienic clamp connections. This allows the valve to be integrated into sanitary process lines, vessels and auxiliary systems while maintaining the required pressure protection function.
AISI 316L and polished internal surfaces
The EF010 is manufactured in AISI 316L stainless steel, a material widely used in pharmaceutical, food, cosmetic and other hygienic processing environments.
The valve can be supplied with an internal surface finish down to Ra 0.38 µm, providing a smooth process-contact surface for applications where surface roughness forms part of the equipment specification. The combination of material and controlled surface finish supports integration into clean process environments where sanitary construction is an important selection criterion.
Hygienic clamp connections according to DIN 11866-C and ASME BPE dimensions
The EF010 is available with hygienic clamp connections according to DIN 11866-C / ASME BPE dimensions. This connection architecture is commonly used in sanitary process systems where compact assembly, accessibility and rapid disassembly are required.
The dimensional reference is particularly relevant in pharmaceutical, food and beverage, cosmetic and laboratory installations, where connection geometry often forms part of the piping specification.
Applications in pharmaceutical, food, cosmetic and laboratory environments
The EF010 can be considered for a wide range of hygienic process applications, including:
- pharmaceutical processing;
- biotechnology and bioprocess systems;
- food and beverage production;
- cosmetic manufacturing;
- laboratory and pilot installations;
- hygienic process skids;
- clean utility systems;
- sanitary vessels and auxiliary equipment.
Final valve selection depends on the specific process conditions, including fluid, set pressure, temperature, required relieving capacity, connection standard and project-specific requirements.
FDA-related materials and PED requirements
For hygienic applications, material and documentation requirements may be defined in addition to the pressure-relief duty. The EF010 can be supplied with FDA-compliant materials where applicable to the specified configuration.
For European installations, the valve can also be supplied in accordance with the applicable Pressure Equipment Directive (PED) requirements. The exact certification and documentation scope should be defined according to the project and application requirements.
Sizes for sanitary process installations
The EF010 range is available in sizes from 3/4" to 3", covering a variety of sanitary process lines and equipment. Connection size is only one part of the selection process: required capacity, pressure, temperature and process conditions must also be considered before defining the final valve configuration.
A dedicated sanitary PSV configuration
The EF010 extends the EFSVALVES pressure safety valve range into applications where hygienic construction is required. Its combination of AISI 316L construction, polished process-contact surfaces and DIN 11866-C / ASME BPE clamp dimensions provides a dedicated configuration for sanitary process environments.
This makes the EF010 suitable for projects where pressure protection must be integrated into pharmaceutical, food, cosmetic or other clean process systems.
More than a decade of sanitary pressure protection experience
EFSVALVES first presented this sanitary pressure safety valve capability in 2015. The current EF010 brings that experience into the present EFSVALVES product range, maintaining the focus on sanitary materials, smooth internal surfaces and hygienic connection systems for pressure protection in clean process applications.
Related product
EF010 Sanitary Pressure Safety Valve
Explore the current EF010 range, available sizes, AISI 316L construction, polished surface options and hygienic clamp connections.
Explore the EF010 Sanitary Pressure Safety Valve →
Need to evaluate a sanitary pressure safety valve?
For pharmaceutical, food, cosmetic or laboratory applications, the final configuration should be defined from the actual process conditions and hygienic requirements.
EFSVALVES can review the application data and help determine the appropriate EF010 configuration.
